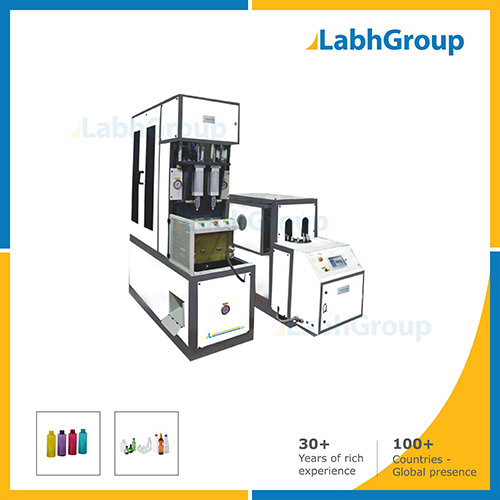

Semi-automatic Low Cost Pet Stretch Blow Moulding Machine

Model No.

SM-236

Machine Name

Semi-automatic two cavity pet stretch blow moulding machine

Speed

Up to 800 bottles perhour

Number of Cavity

2

Cavity Pitch

150 mm

Mould Thickness

140 mm to 160 mm

Clamping Stroke

200 mm to 250 mm

Stretching Stroke

400 mm

Preform Holders

46 / 54

Maximum Neck Diameter

25 mm to 30 mm

Maximum Product Diameter

75 mm to 190 mm

Product Volume

30 ml to 5000 ml

Product Height

300 mm to 350 mm

Heating Zone

6 / 8

Ancillary Equipment 1

Air compressor

Ancillary Equipment 2

Water chiller

Pneumatic

Festo, Germany or equivalent

Main Motor

Siemens, Japan or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

440 Volts, 50 Hz, A.C., Three phase with Neutral

( can also be designed as per specific requirement )

Power Consumption

15KW per hour (Approx.)

Working Temperature

-10 C to 40 C (14 F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Conveyor Dimension

4000 x 1000 x 1500 mm( L x W x H,  Approx. )

Blower Dimension

2100 x 700 x 2600 mm ( L x W x H,  Approx. )

Machine Weight

1800 Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
