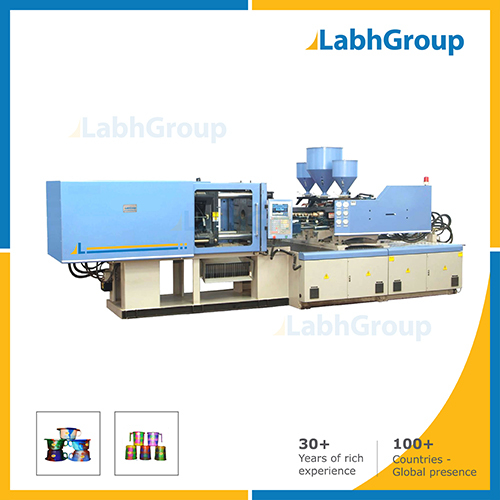

Plastic Injection Moulding Machine For Making Pet Preform

Model No.

SM-351

Machine Name

Automatic pet preform plastic injection moulding machine

Plasticising Capacity

20 gm to 90 gm per second

Screw Diameter

45 mm to 90 mm

Screw Speed

130 RPM to 200 RPM

Injection Pressure

980 bar to 1260 bar

System Pressure

150 bar

Screw Stroke

165 mm to 330 mm

Stroke Weight ( PET )

310 gm to 2750 gm

Injection Rate

200 gm to 770 gm per second

Injection Time

1.5 second to 3.5 second

Nozzle Contact Force

2.5 ton to 10 ton

Locating Ring Diameter

125 mm to 160 mm

Clamping Force

100 ton to 350 ton

Mould Opening Stroke

365 mm to 700 mm

Mould Height

160 mm to 750 mm

Maximum Daylight

815 mm to 1450 mm

Ejector Force

5.5 ton to 14 ton

Ejector Stroke

130 mm to 200 mm

Ancillary Equipment 1

Air compressor

Ancillary Equipment 2

Water chiller

PLC Control

Siemens, Japan or equivalent

HMI

Siemens, Japan or equivalent

Pneumatic

Festo, Germany or equivalent

Hydraulic System

Mercury Indian or equivalent

Main Motor

Siemens, Japan or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

440 Volts, 50 Hz, A.C., Three phase with Neutral

( can also be designed as per specific requirement )

Power Consumption

100KW per hour (Approx.)

Working Temperature

-10 C to 40 C (14 F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Machine Dimension

8000 x 2000 x 2800 mm( L x W x H,  Approx. )

Machine Weight

15000Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
