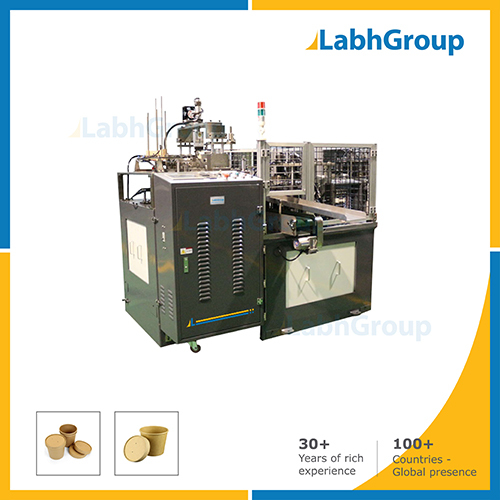

Automatic Paper Cup Forming Machine With Ultrasonic Seal

1000000 INR

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic Paper Cup Forming Machine With Ultrasonic Seal Price And Quantity

Minimum Order Quantity 1 Set
Price 1000000 INR

Automatic Paper Cup Forming Machine With Ultrasonic Seal Trade Information

FOB Port Any Indian port
Payment Terms Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Cash Against Delivery (CAD) Telegraphic Transfer (T/T)
Sample Policy Contact us for information regarding our sample policy
Packaging Details Sea Worthy Wooden Export Packing
Main Export Market(s) Western Europe Australia Eastern Europe Central America Middle East South America Asia North America Africa
Main Domestic Market All India
Certifications ISO 9001-2015, CE

Product Description

Best quality Automatic Paper Cup Forming Machine With Ultrasonic Seal from Labh Group - A Global leader with 30+ years of rich experience with presence in 100+ countries and serving 10,000+ delighted customers throughout the world.

Technical specification of Automatic Paper Cup Forming Machine With Ultrasonic Seal

Model No.	JA-201
Machine Name	Automatic paper cup forming machine with ultrasonic seal
Speed	Up to 3000 cups per hour
Paper Cup Specifications	2 oz to 22 oz
Cup Paper Material	Single and double coated paper
Cup Mouth Outer Diameter	50 mm to 95 mm
Cup Bottom Outer Diameter	35 mm to 70 mm
Cup High	30 mm to 175 mm
Taper	2 to 8
Maximum Roll Diameter	1000 mm
Reel Inner Diameter	76 mm
PLC Control	Siemens, Japan or equivalent
HMI	Siemens, Japan or equivalent
A.C. Frequency Drive	Delta - Taiwan or equivalent
Ultrasonic Sealer	Emerson U.S. or equivalent
Digital Temperature Controller	Omron Japan or equivalent
Main Motor	Siemens, Japan or equivalent
Main Gear Box	Bonfiglioli Italy or equivalent
Switch Gears	Schneider France or equivalent
Power Supply	440 Volts, 50 Hz, A.C., Three phase with Neutral ( can also be designed as per specific requirement )
Power Consumption	8 KW per hour (Approx.)
Working Temperature	-10 C to 40 C (14 F to 104 F )
Working Humidity	Up to 90 percentage
Noise Level	Up to 80 dbA
IP Protection Class	IP54
Working Hours	24 hours per day
Machine Dimension	3000 x 1450 x 2000 mm( L x W x H, Approx. )
Machine Weight	2000 Kg. (Approx.)
Note	Exact specifications may vary and shall be made available upon specific request.

Salient features of Automatic Paper Cup Forming Machine With Ultrasonic Seal

Aesthetically and ergonomically build machine for best performance
Produced in an advanced state of the art manufacturing facility
World class bought out items for optimum operations
Efficient control panel to set important operative parameters easily
Designed to work 24 hours, round the clock
Operator friendly machine, hence easy to operate and maintain
Low maintenance and operating cost
Sturdy design to ensure long life and t ouble-free operation

Why to buy Automatic Paper Cup Forming Machine With Ultrasonic Seal from Labh Group?

1 + 1 year extended warranty
Best quality product
Most competitive price
Smooth installation &commissioning
Lifetime support

Labh Group provides next-generation turn-key solutions to companies from start-ups to multinationals across the globe. We have helped thousands of companies to achieve better productivity and higher profitability with complete peace of mind. You can visit our corporate website to know what we do and how we can help to grow your business. Please drop us an email and our executive will be delighted to assist you.
