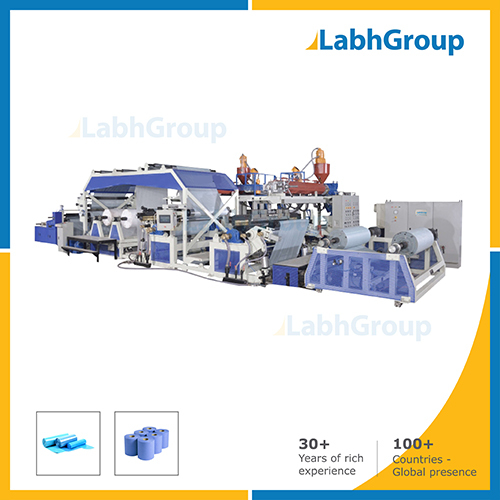

Solvent Less Extrusion Lamination Plant

Model No.

SM-501

Machine Name

Automatic solvent less extrusion lamination plant

Capacity

Up to 140kg per hour

Line Speed

Up to 120 meter per minute

Screw Diameter

65 / 75 mm

Die Width

1250 / 1550/ 1650 mm

Suitable For

Woven sacks, BOPP printed bags, jumbo bags (FIBC), non-woven fabric, cotton fabrics etc.

Optional Item 1

Auto tension controller

Optional Item 2

Front &back matching system

Optional Item 3

Auto poly edge trimming system

Ancillary Equipment 1

Air compressor

Ancillary Equipment 2

Water chiller

PLC Control

Siemens, Japan or equivalent

HMI

Siemens, Japan or equivalent

Pneumatic

Festo, Germany or equivalent

AC Variable Drive

Delta, Taiwan or equivalent

Main Motor

Siemens, Japan or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Digital Temperature Controller

Omron, Japan or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

440 Volts, 50 Hz, A.C., Three phase with Neutral

( can also be designed as per specific requirement )

Power Consumption

50KW per hour (Approx.)

Working Temperature

-10 C to 40 C (14 F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Machine Dimension

6000 x 3000 x 3000 mm( L x W x H,  Approx. )

Machine Weight

6000 Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
