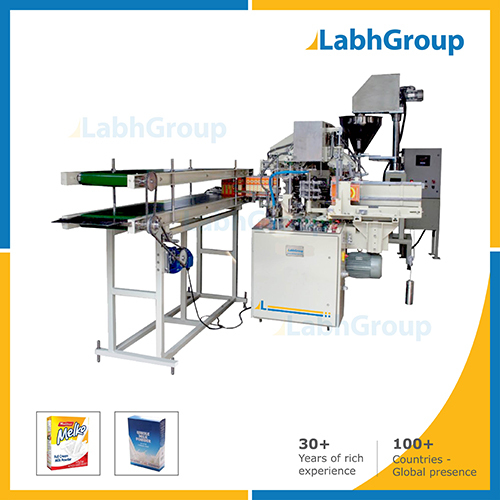

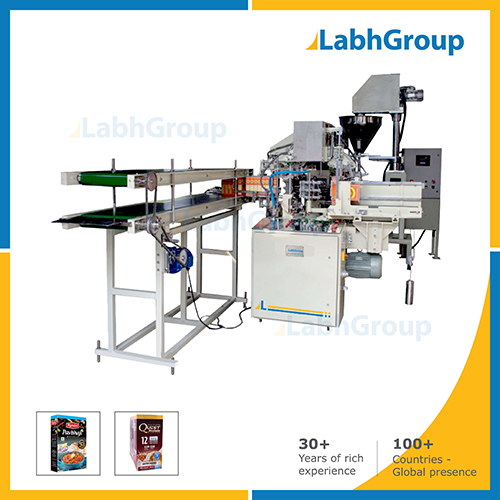

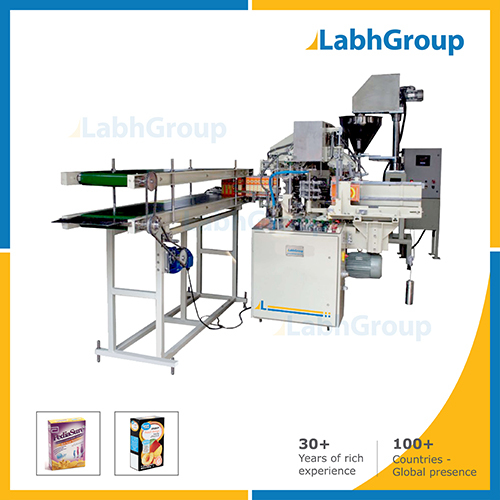

Lined Carton Packing Machine For Biscuit Nuts Chocolates

Model No.

LC-1053

Machine Name

Lined carton packing machine with weigh filler for candy, chocolates nuts

Machine Category

Carton packing machine

Filler Type

Advance combinational multi-head weigh filler

Suitable to Pack

Snack food, Corn flakes, Soya nuggets namkeen and other similar products

Carton Length

60 mm to 150 mm

Carton Width

22 mm to 110 mm

Carton Height

83 mm to 230 mm

Filling Range

100 gm to 2000 gm

Speed

Up to 5000 cartons / hour

Optional Item 1

Online batch code printing attachment

Optional Item 2

Hot melt glue applicator

Optional Item 3

Leaflet insertion devices

Ancillary Equipment 1

Packing conveyor

Ancillary Equipment 2

Air compressor

Programmable Logic Controller ( PLC )

Omron, Japan or equivalent

HMI Touch Screen

Omron, Japan or equivalent

Digital Temperature Controller

Omron, Japan or equivalent

Main Motor

Siemens, Japan or equivalent

Pneumatic

Festo Germany or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Variable Frequency Drive

Delta, Taiwan or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

440 Volts, 50 Hz, A.C., Three Phase withNeutral

( can also be designed as per specific requirement )

Power Consumption

15 KW per hour (Approx.)

Working Temperature

-10 C to 40 C ( 14F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Machine Dimension

7540 x 2430 x 2275( L x W x H in mm, Approx.)

Machine Weight

8000 Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
