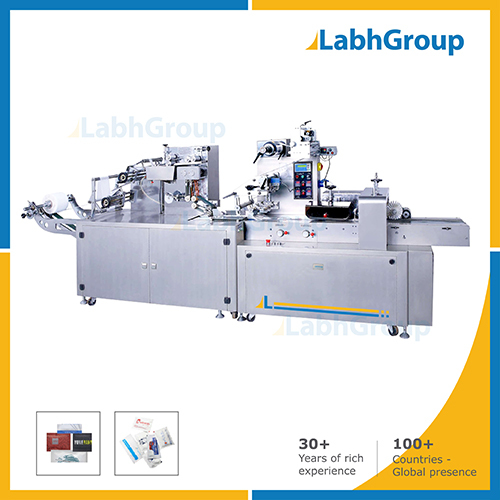

Bulk Tissue Paper Packing Machine

Model No.

LB-606

Machine Name

Bulk tissue paper sachet bag pouch packing machine

Machine Category

Horizontal form, fill and seal pouch packaging machine

Machine Design

Mechanical continuous motion machine

Suitable to Pack

Wet tissue paper, Tissue paper,Baby wipesand other similar products

Speed

Up to 3000 packs / hour

Pouch Width

60 mm to 250 mm

Pouch Height

100 mm to 350 mm

Sealing Type

Hot bar sealing

Sealing Temperature

Up to 250 C  ( 482 F )

Sealing Options

Centre Seal Pillow Pack

Roll Unwinding

Mechanical

Vertical Sealing Jaws Movement

Mechanical

Horizontal Sealing Jaws Movement

Mechanical

Packing Material

Any heat sealable laminated material

Film Thickness

Up to 150 Micron

Film Reel Inner Core Diameter

76 mm

Maximum Film Reel Diameter

300 mm

Optional Item

Online batch code printing attachment

Ancillary Equipment 1

Out-feed sachet conveyor

Ancillary Equipment 2

Pouch Inspection table

Programmable Logic Controller ( PLC )

Omron, Japan or equivalent

HMI Touch Screen

Omron, Japan or equivalent

Servo motor

Omron, Japan or equivalent

Servo motion control

Siemens, Japan or equivalent

Main Motor

Siemens, Japan or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Digital Temperature Controller

Omron, Japan or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

220 Volts, 50 Hz, A.C., Single Phase

( can also be designed as per specific requirement )

Power Consumption

3.5 KW per hour (Approx.)

Working Temperature

-10 C to 40 C (14 F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Machine Dimension

5100 x 1000 x 1800( L x W x H in mm, Approx. )

Machine Weight

750 Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
