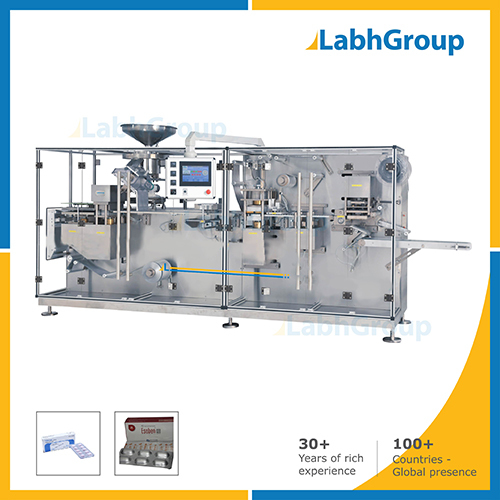

Blister Form And Function Packing Machine

Model No.

LC-1204

Machine Name

Automatic blister form and function packing machine

Machine Category

Blister packing machine

Base Film Width

Up to 210 mm

Sealing Foil Width

Up to 210 mm

Blister Foil Thickness

0.13 mm to 0.40 mm

Sealing Foil Thickness

0.02 mm to 0.03 mm

Maximum Film Reel Diameter

440 mm

Pack Length

Up to 230 mm

Pack Width

Up to 110 mm

Blister Forming Depth

Up to 16 mm

Speed

Up to 2500packs / hour

Packing Base Material

PVC, PVC/PVDC, PVC/AL/OPA, ACLAR

Packing Lidding Material

Aluminum with heat sealable lacquer or PVDC coating, Glassine paper

Optional Item

Online batch code printing attachment

Ancillary Equipment 1

Packing conveyor

Ancillary Equipment 2

Air compressor

Programmable Logic Controller ( PLC )

Omron, Japan or equivalent

HMI Touch Screen

Omron, Japan or equivalent

Digital Temperature Controller

Omron, Japan or equivalent

Servo Motor & Controller

Omron, Japan or equivalent

Main Motor

Siemens, Japan or equivalent

Pneumatic

Festo Germany or equivalent

Main Gear Box

Bonfiglioli Italy or equivalent

Variable Frequency Drive

Delta, Taiwan or equivalent

Switch Gears

Schneider France or equivalent

Power Supply

440 Volts, 50 Hz, A.C., Three Phase withNeutral

( can also be designed as per specific requirement )

Power Consumption

7.5 KW per hour (Approx.)

Working Temperature

-10 C to 40 C ( 14 F to 104 F )

Working Humidity

Up to 90 percentage

Noise Level

Up to 80 dbA

IP Protection Class

IP54

Working Hours

24 hours per day

Machine Dimension

3100 x 1100 x 2000 ( L x W x H in mm, Approx.)

Machine Weight

1500 Kg. (Approx.)

Note

Exact specifications may vary and shall be made available upon specific request.
